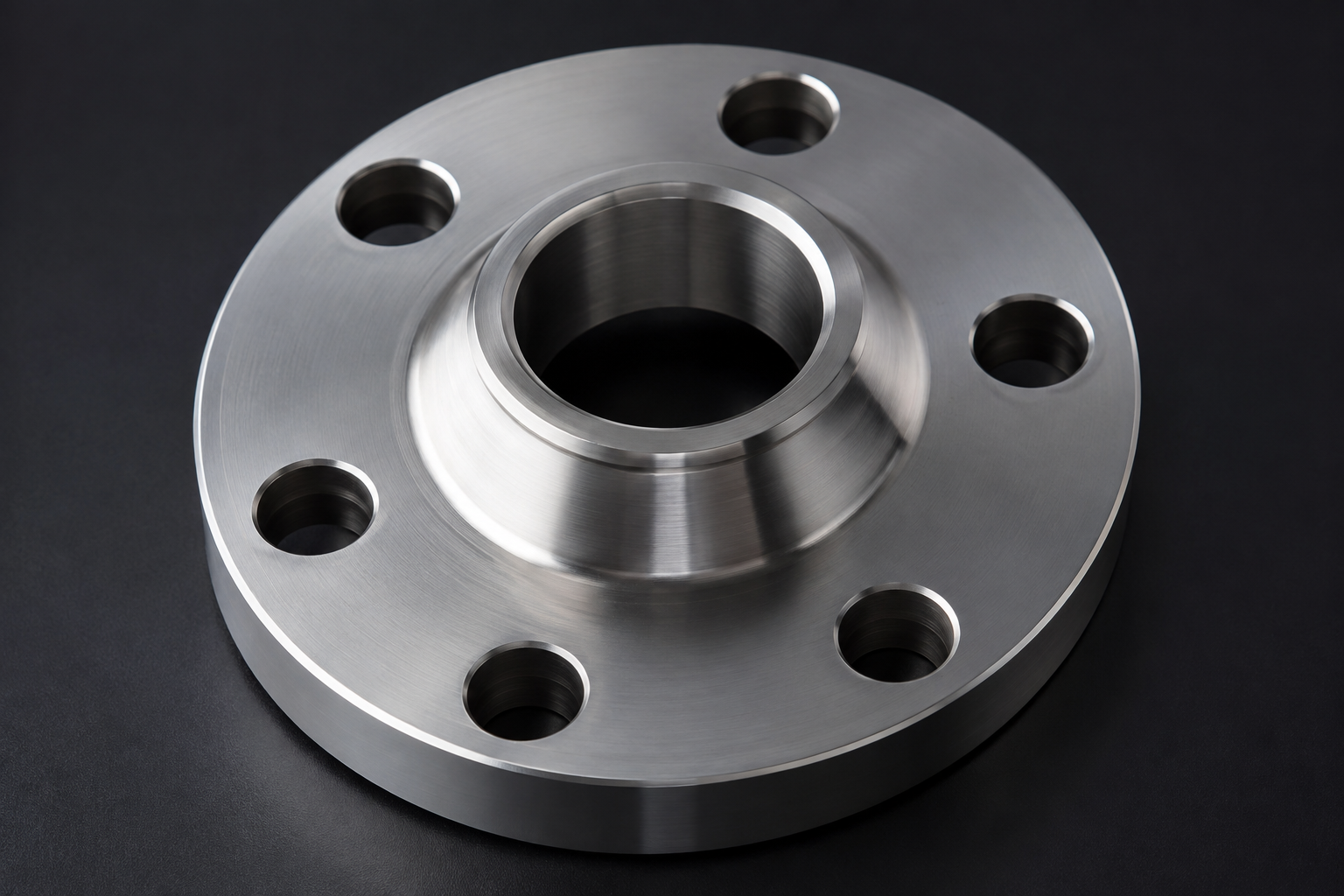

Socket Weld Flanges Ferrobend manufactures and supplies premium quality Socket Weld Flanges engineered for small-bore, high-pressure and high-temperature industrial piping systems. Manufactured in accordance with international standards to provide exceptional strength, leak-proof performance, dimensional accuracy, and long service life across demanding industrial applications.

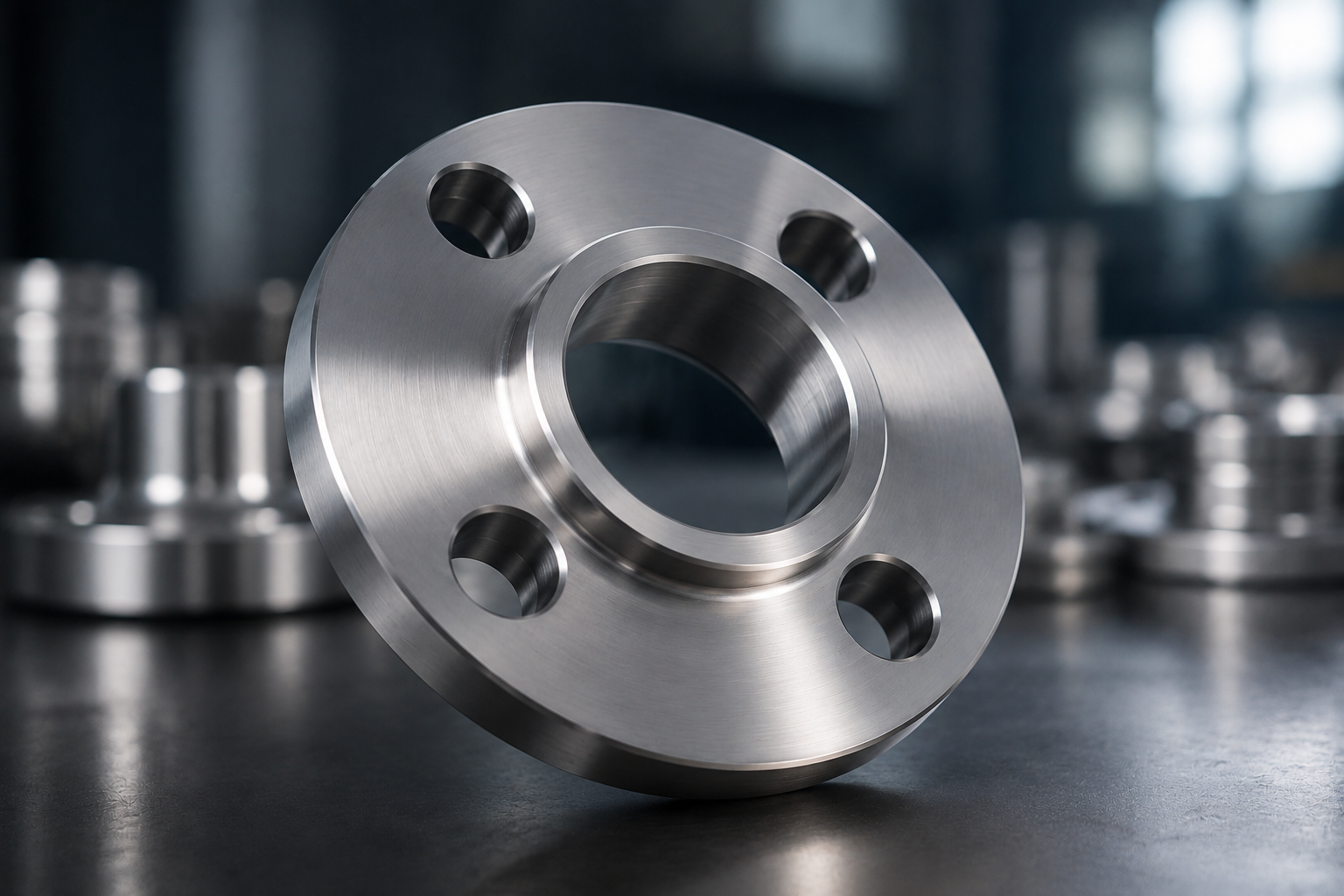

A Socket Weld Flange is a forged pipe flange designed for small-diameter, high-pressure piping systems. It features a precision-machined recessed socket into which the pipe is inserted before being secured with a fillet weld around the outer edge.
This design provides excellent mechanical strength, accurate pipe alignment, and a leak-resistant piping connection, making Socket Weld Pipe Flanges ideal for high-pressure, low-temperature and small-bore piping applications. They are widely used in oil & gas, petrochemical, chemical processing, power generation, and other critical industrial piping systems where strength, reliability, and compact design are essential.
Designed to provide a robust connection for small-diameter piping systems.
The recessed socket ensures proper pipe positioning before welding.
Reliable for demanding high-pressure and low-temperature services.
Proper welding provides dependable leak-resistant piping connections.
Ideal where installation space is limited.
Widely used across critical industrial piping applications.

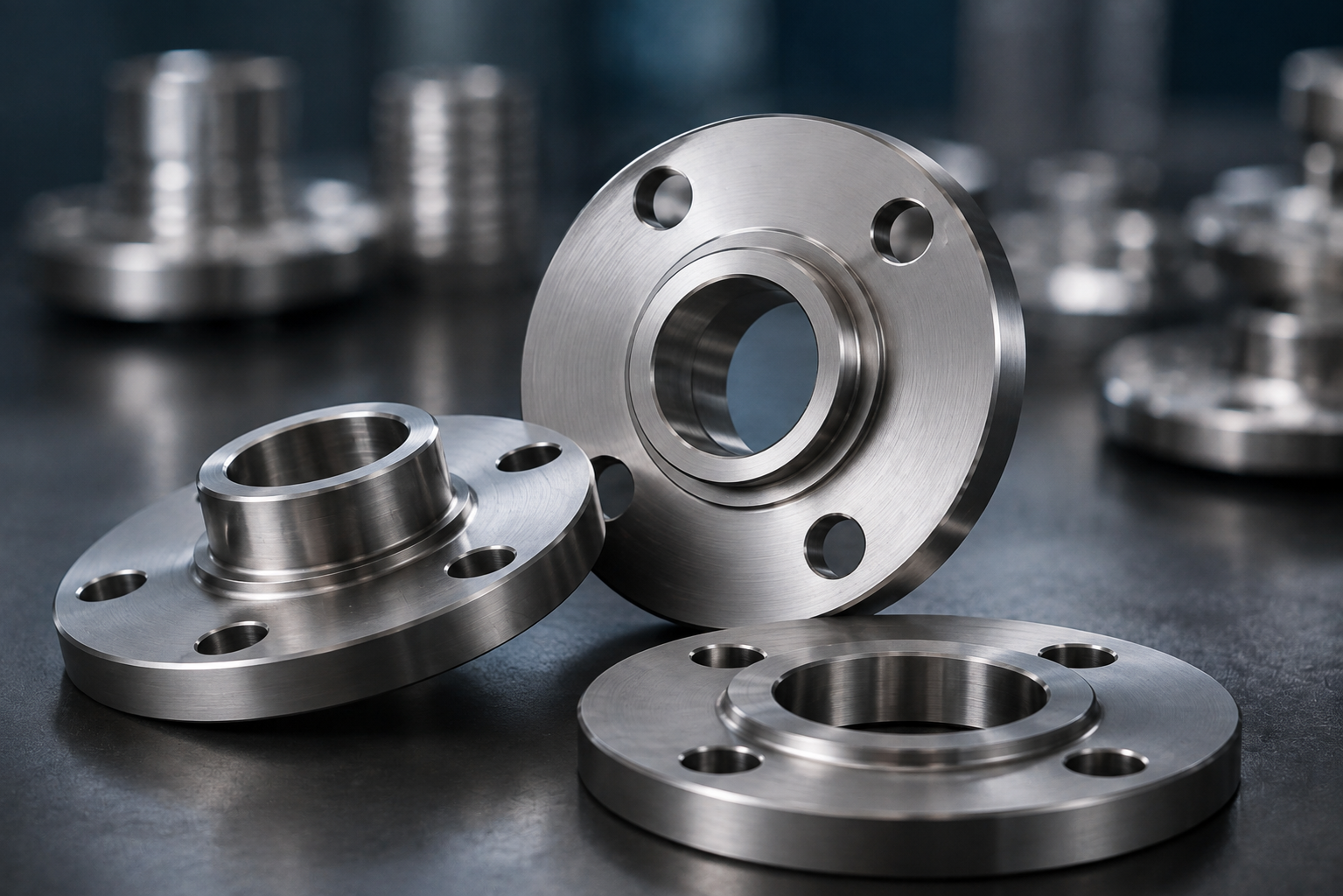

Socket Weld Flanges are widely used in high-pressure piping systems because their recessed socket design provides accurate pipe alignment, excellent mechanical strength, and a secure welded connection. They are especially suitable for small-bore piping where reliability, durability, and leak prevention are essential in demanding industrial applications.

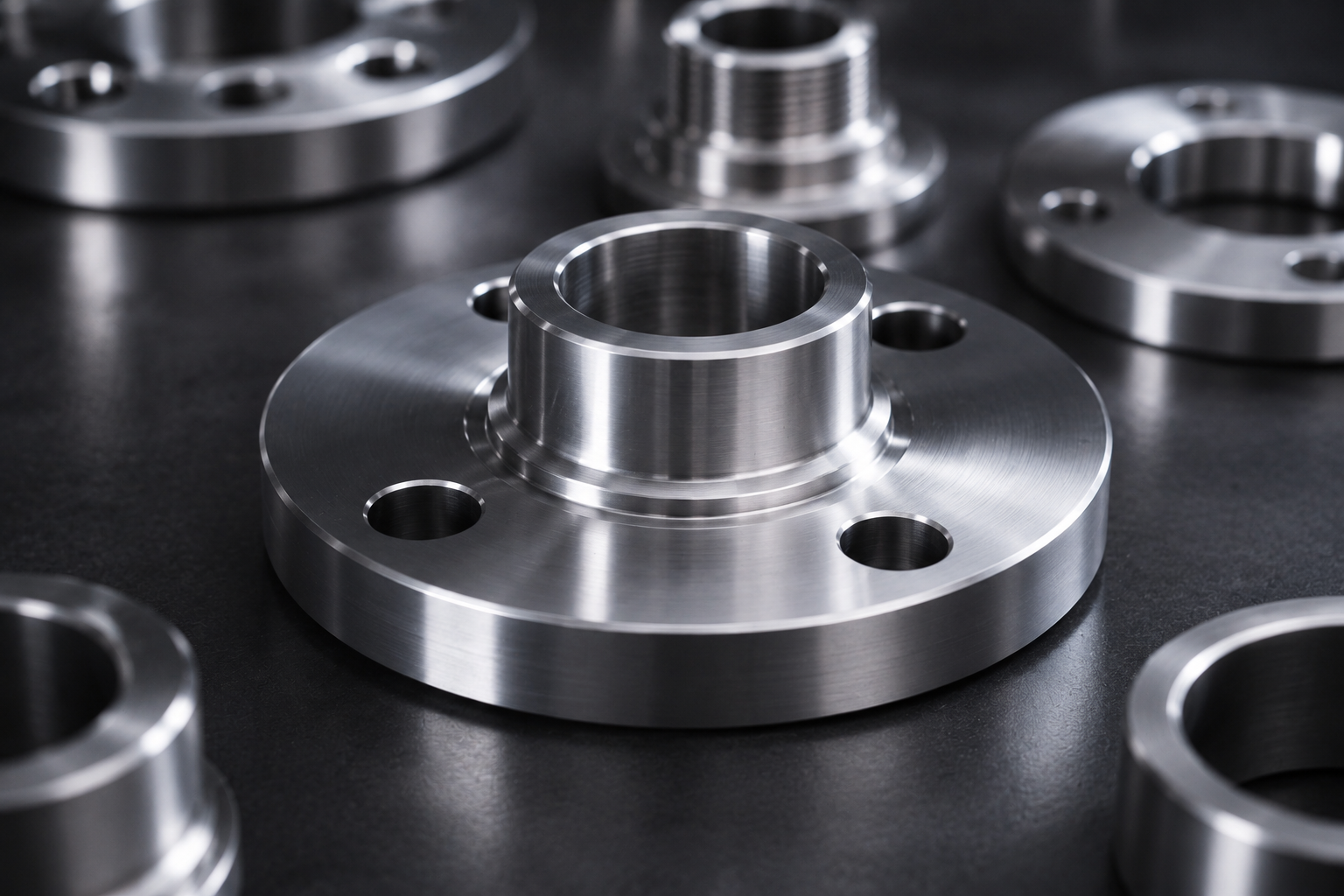

Their High Mechanical Strength makes them an excellent solution for small-diameter piping systems, while Accurate Pipe Alignment helps ensure proper installation before welding.
They also Help Minimize Leakage by providing a dependable leak-resistant piping connection. Their Compact & Space-Saving Design makes them ideal for small-bore pipelines used in oil & gas, petrochemical, chemical processing, steam, and hydraulic systems.

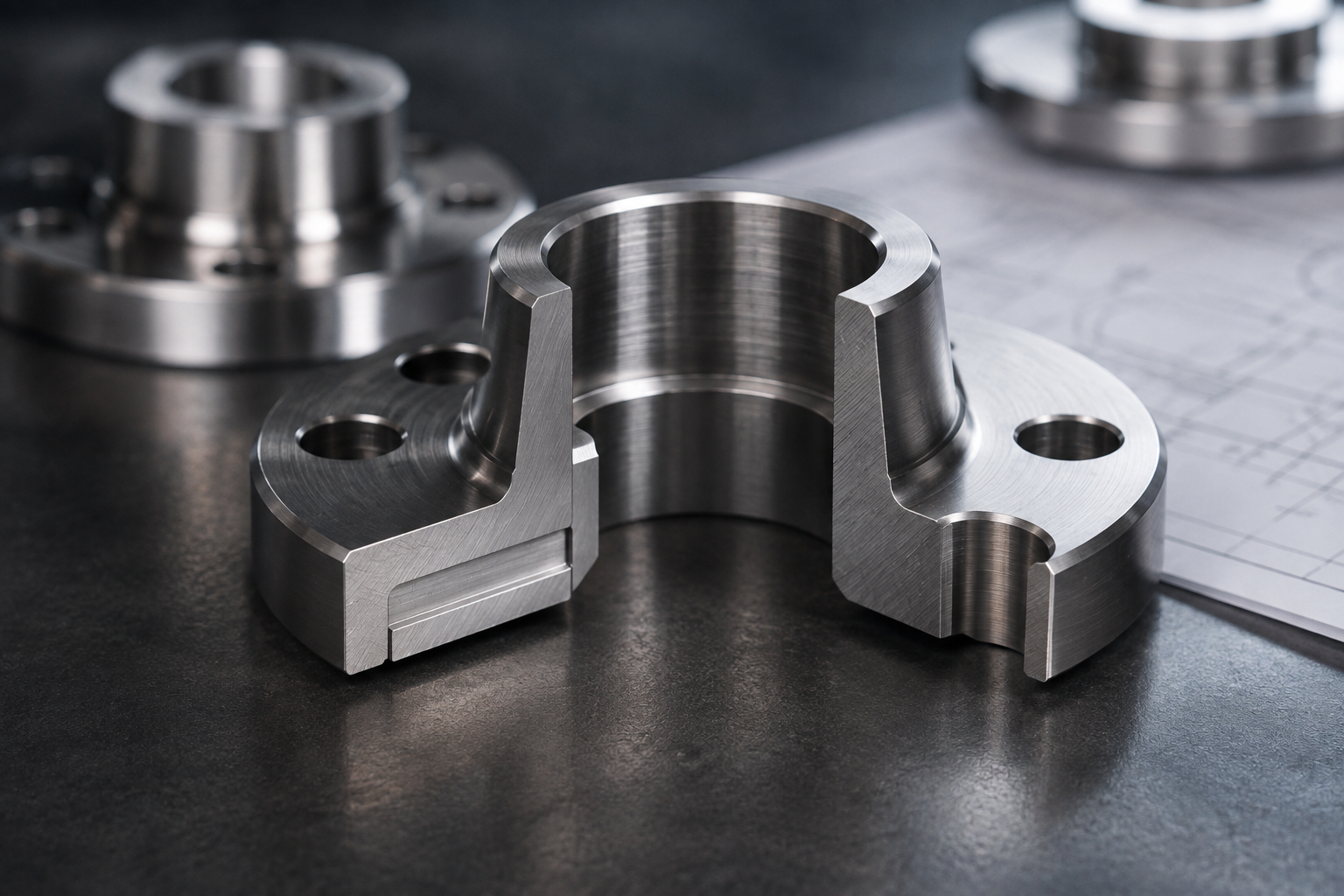

A Socket Weld Flange is manufactured with a precision-machined recessed socket that allows the pipe to be inserted before being secured with an external fillet weld. This design provides accurate pipe alignment, a strong mechanical connection, and dependable performance in high-pressure, small-bore piping systems.
To support reliable welding and help reduce thermal stress, a small expansion gap is typically maintained between the pipe end and the socket shoulder before welding. Manufactured from high-quality forged steel, Socket Weld Pipe Flanges offer excellent strength, durability, and long-term performance in industrial piping applications.
The precision-engineered construction ensures:
Socket Weld Flanges are widely used in high-pressure, small-bore piping systems because they provide a strong mechanical connection, accurate pipe alignment, and dependable long-term performance. Their compact design and welded construction make them a reliable choice for demanding industrial piping applications.
Ferrobend manufactures Socket Neck Flanges in a comprehensive range of Stainless Steel, Carbon Steel, Alloy Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Titanium, Copper Alloys, and other special engineering materials for demanding industrial applications.
304 • 304L • 316 • 316L
321 • 347 • + More Grades
A105 • LF2 • A350
A694 • A516 • + More Grades
F5 • F9 • F11 • F22
F91 • F92 • + More Grades
F51 • F60 • F52
F44 • S31803 • + More Grades
F53 • F55 • F61
S32750 • S32760 • + More Grades
200 • 201 • 625
825 • C276 • + More Grades
Inconel • Monel • Hastelloy
Incoloy • Alloy 20 • + More Grades
C70600 • C71500 • Brass
Bronze • Cu-Ni • + More Grades
Grade 2 • Grade 5 • Grade 7
Grade 12 • Grade 23 • + More Grades
Our products are tested and certified as per international quality standards with complete traceability and documentation.
